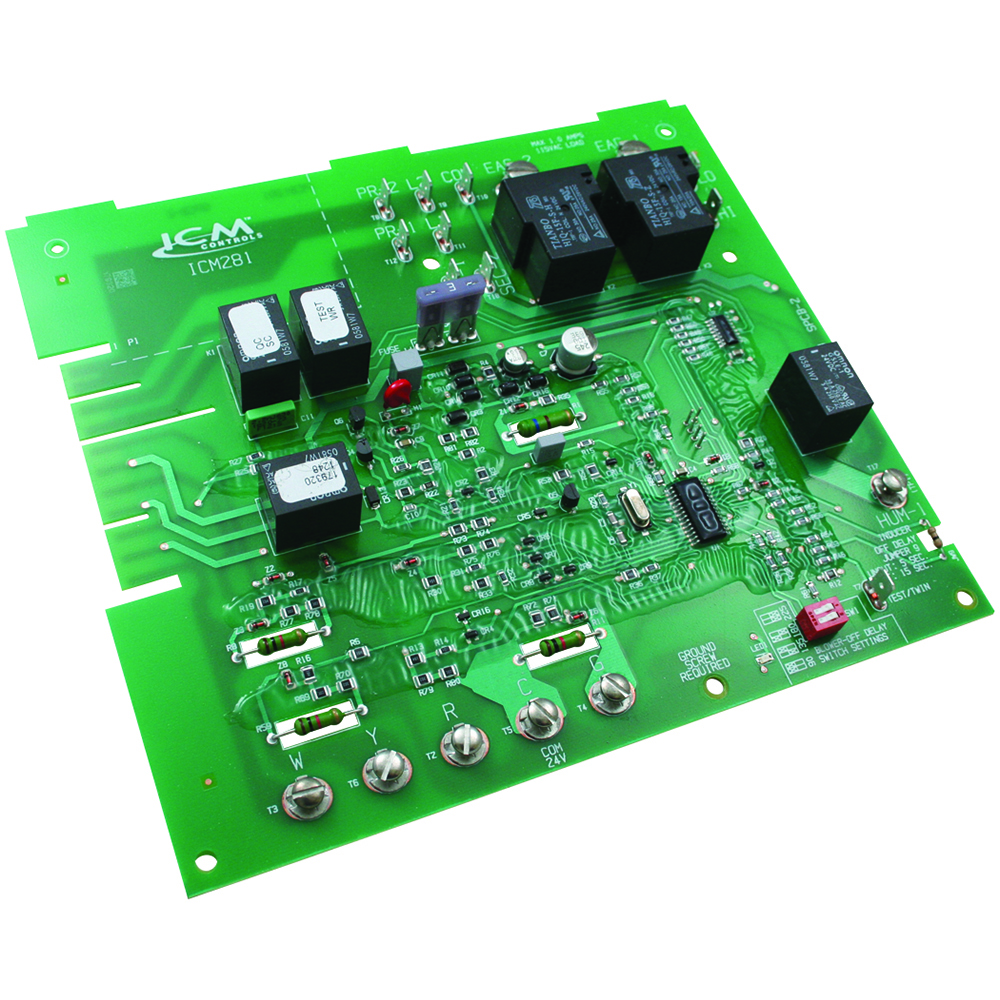

Low cost, direct replacement board for Carrier CESO11005700/01/02. Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner. Microprocessor-based for precise timing. Functions with all 24 VAC thermostats. Designed for 100% gas shutoff in case of ignition failure. Twinning compatible with another ICM281 board.

Voltage Range: Line (98 to 132 VAC) @ 60Hz. Cool Blower: 10A, 2 HP, 240 VAC | Heat: 5A, 1/2 HP, 240 VAC | Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC | Gas Valve: 1.5A @ 30 VAC. Heat Blower on Delay: 40 seconds | Heat Blower Off Delays: 90, 135, 180, and 225 seconds | Fan (Low) On/Off: 1-second | Cool Blower on Delay: 5 seconds | Cool Blower Off Delay: 90 seconds.
