Cross Reference | FCH2, W6380B |
---|

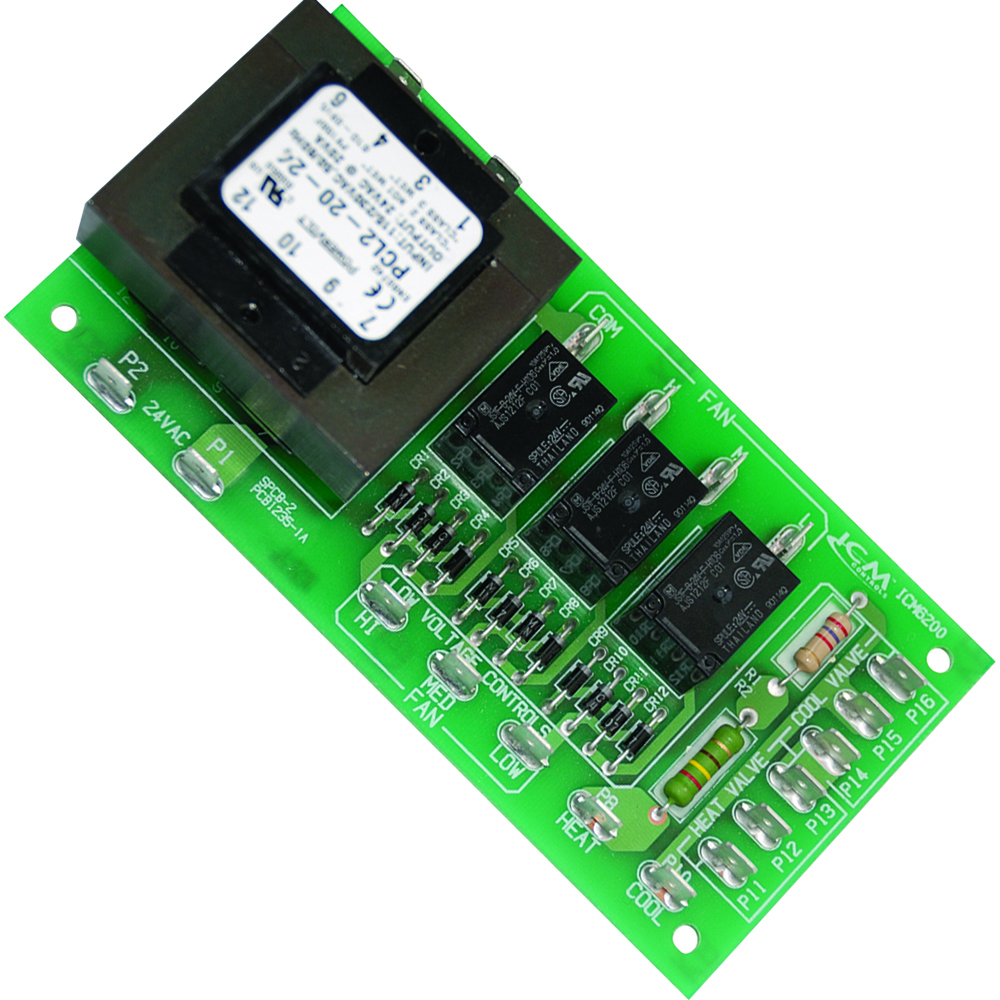

Fan Control Center, 3-speed low voltage, replaces Honeywell W6380B, Xactone FC/H-2
Ability to operate line voltage 3 speed fan motor with low voltage controls. Compatible with 4-pipe, 2 pipe, HP, auto-changeover 20 VA 24 VAC power supply. Suitable for 1/8 HP motors. 1/4″ Quick connect terminals mounts with standard 3″ track.
Input: Transformer Primary: 115VAC 50-60Hz. Fan Inputs Hi, Med, Low: Nominal 17mA @ 24 VAC. Heat & Cool: 1.5A @ 250 VAC. Output:Transformer Secondary: 24 VAC 20 VA.Relay outputs H, M, L:1/8 HP @115 VAC | 10A @ 240VAC resistive max. Heat & Cool Valves: 1.5A @ 250 VAC.
Cross Reference | FCH2, W6380B |
---|
HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
---|---|---|---|
0 | __ |
