Cross Reference | FCH1 |
---|

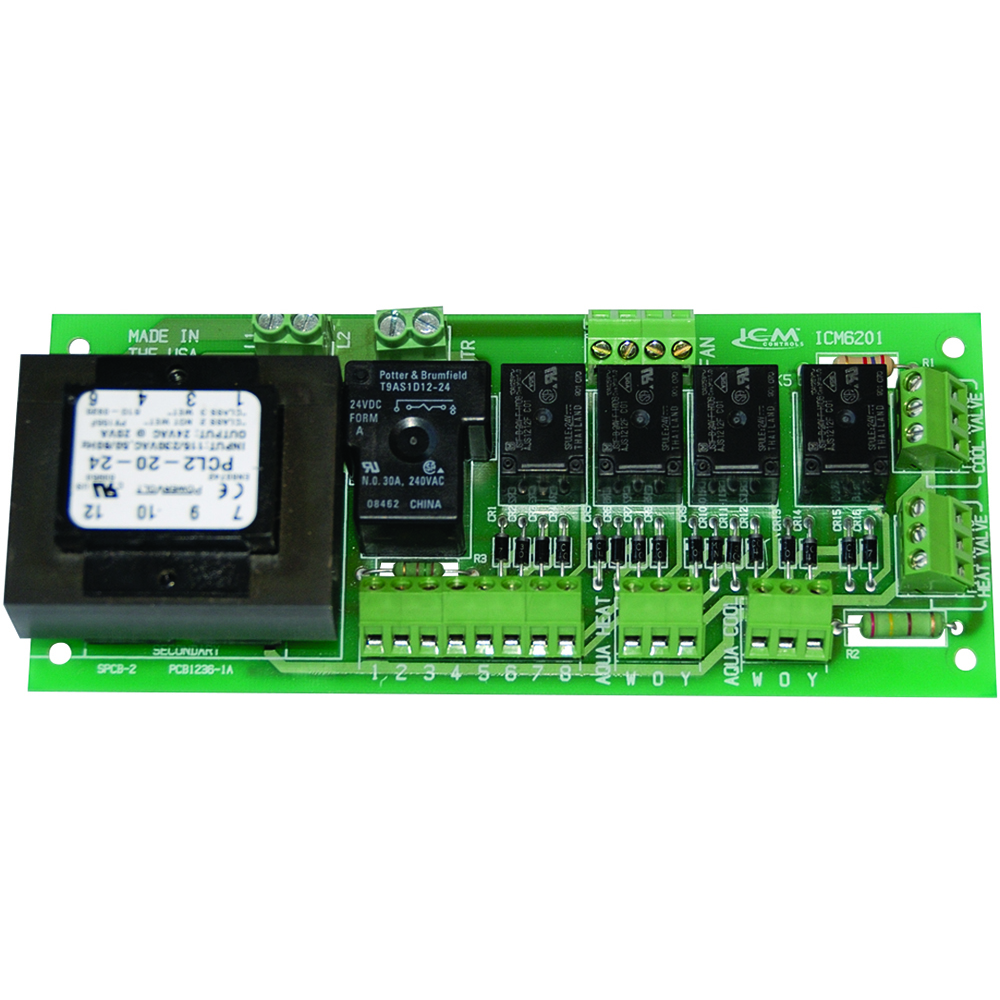

Fan & Electric Heat Control Center, 3-speed low voltage, replaces Xactone FC/H-1
Ability to operate line voltage 3 speed fan motor with low voltage controls. Ability to operate line voltage electric heating element with low voltage controls. Compatible with 4-pipe, 2 pipe, aquastat auto-changeover, and heat pump 20 VA 24 VAC power supply. Suitable for 1/8 HP motors. Screw terminal receptacles mounts with standard 3″ track.
Input: Transformer Primary (L1 & L2): 115VAC 50-60Hz Hi, Med, Low (8,7,6): Nominal 17mA @ 24 VAC. Inputs 1,2,3,4,5, Auqa Heat & Cool: 1.5A @ 250 VAC. Output:Transformer Secondary: 24 VAC 20 VA. Relay outputs H, M, L:1/8 HP @115 VAC | 10A @ 240VAC resistive max. HTR Output: 30A @ 240 VAC resistive. Heat & Cool Valves: 1.5A @ 250 VAC.
Cross Reference | FCH1 |
---|
