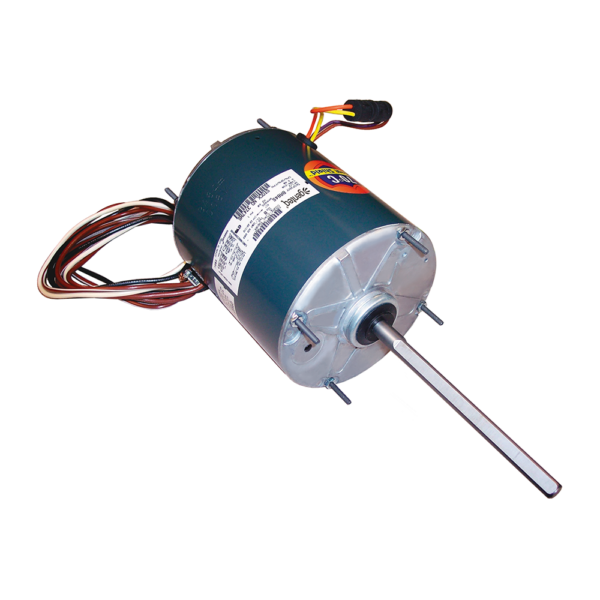

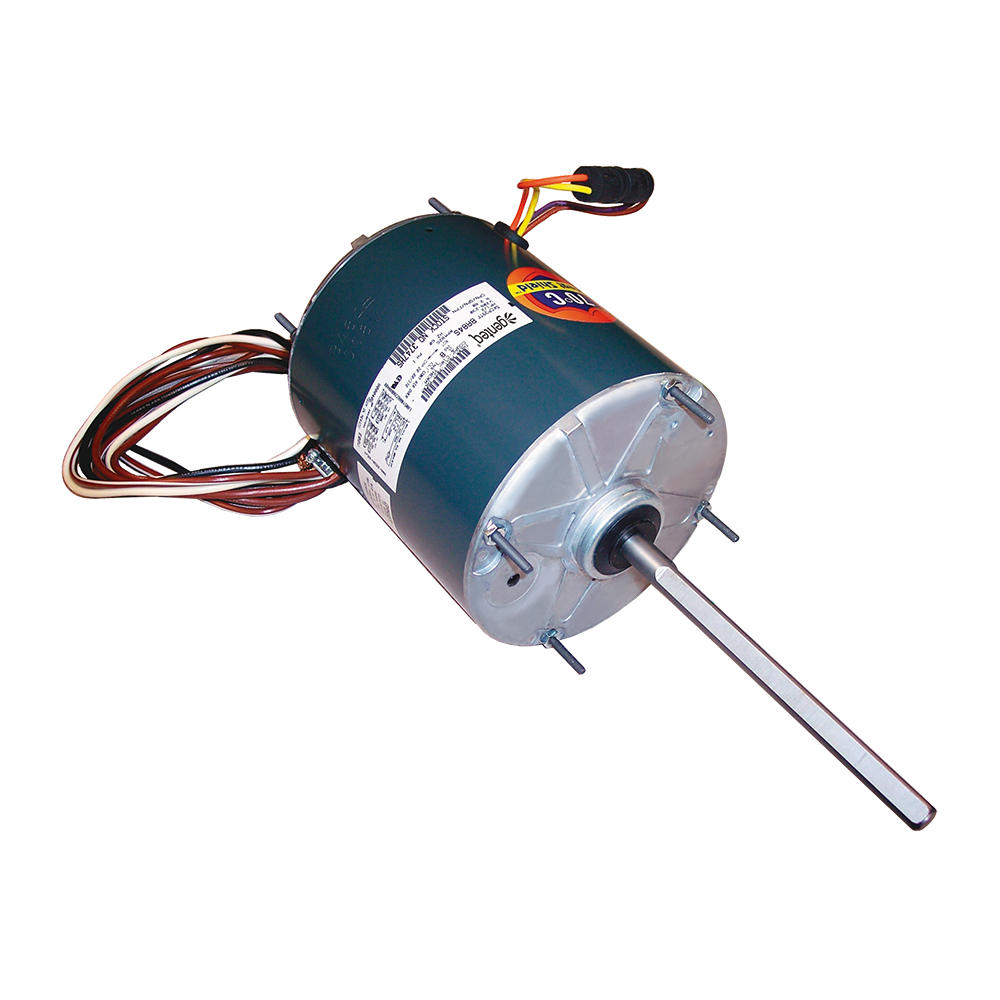

High Temp Condenser Fan Motor, 1/6HP, 1075/1 RPM, 1.0FLA, 208-230V, 70C Ambient

These High Temp condenser fan motors install with all standard 48 frame mounting brackets. They are electrically reversible with quick connects for easy capacitor installations. They come with automatic thermal overload protection and have class B insulation. They have 48in. leads, extended thru bolts on both ends and drain holes in both endshields with plugs. Designed for 70°C ambient operation.


Additional information

Weight 10.00 lbs
Dimensions 6.50 × 6.40 × 14.20 in
Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 08155850202266.4014.206.5010.00
Master Case
Pallet 5081558502022148.0056.0040.00800.0080
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
