Additional information
Weight | 13.00 lbs |
---|---|
Dimensions | 6.20 × 6.60 × 14.20 in |

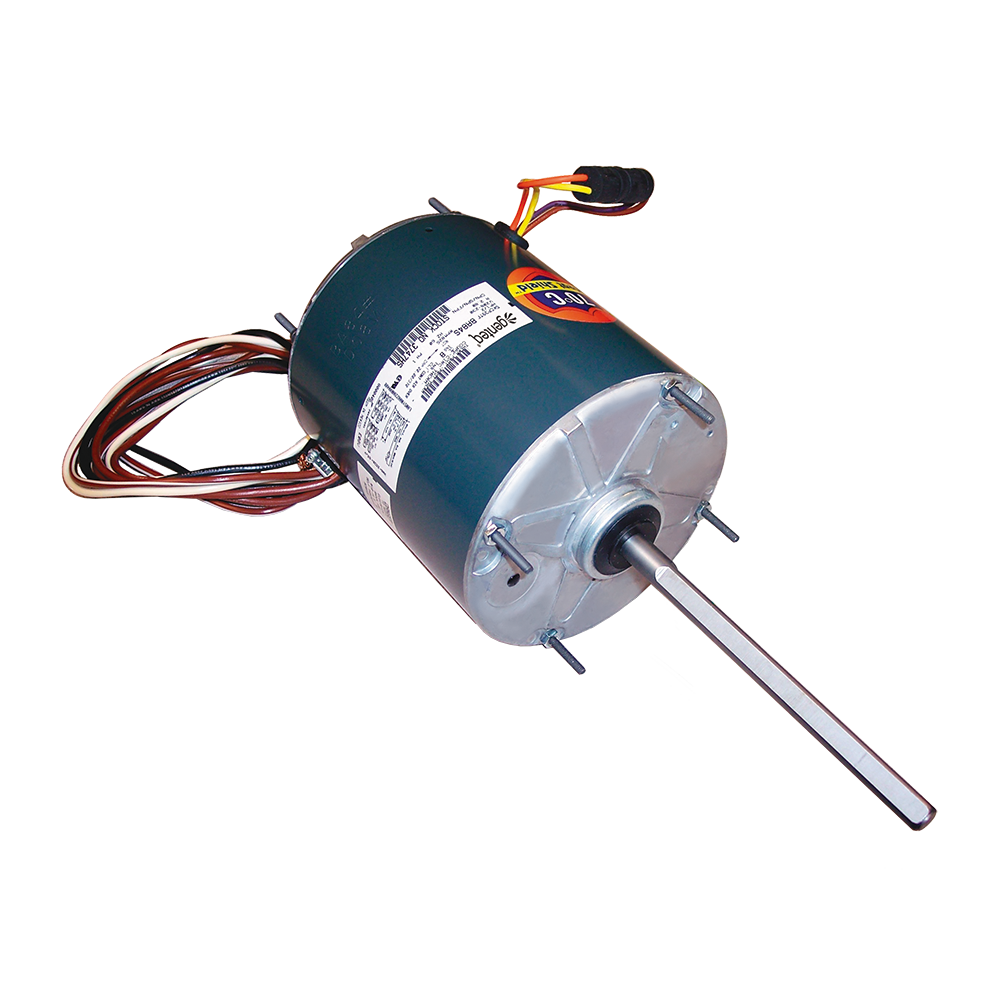

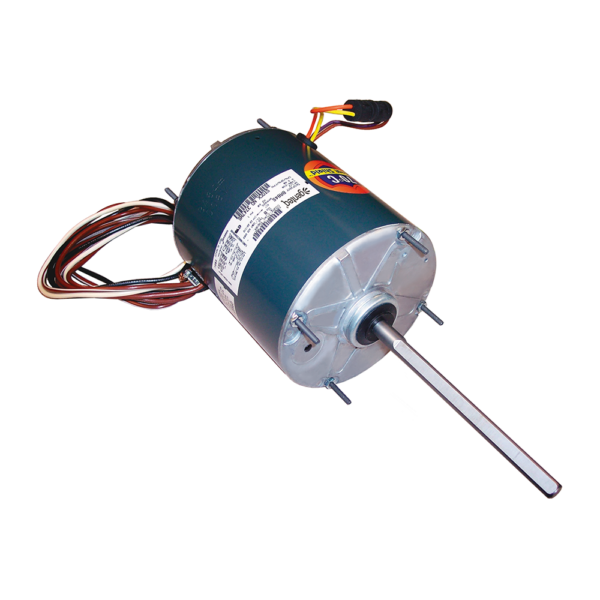

High Temp Condenser Fan Motor, 1/4HP, 1075/1 RPM, 0.7FLA, 460V, 70C Ambient
These High Temp condenser fan motors install with all standard 48 frame mounting brackets. They are electrically reversible with quick connects for easy capacitor installations. They come with automatic thermal overload protection and have class B insulation. They have 48in. leads, extended thru bolts on both ends and drain holes in both endshields with plugs. Designed for 70°C ambient operation.
Weight | 13.00 lbs |
---|---|
Dimensions | 6.20 × 6.60 × 14.20 in |
Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
---|---|---|---|---|---|---|
Unit | 0815585020233 | 6.60 | 14.20 | 6.20 | 13.00 | |
Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
Pallet | 50815585020238 | 48.00 | 56.00 | 40.00 | 1040.00 | 80 |
HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
---|---|---|---|
8501.20.3000 | Mexico | N | N |
