Additional information
| Weight | 13.00 lbs |
|---|---|
| Dimensions | 8.50 × 8.50 × 16.50 in |
6105E

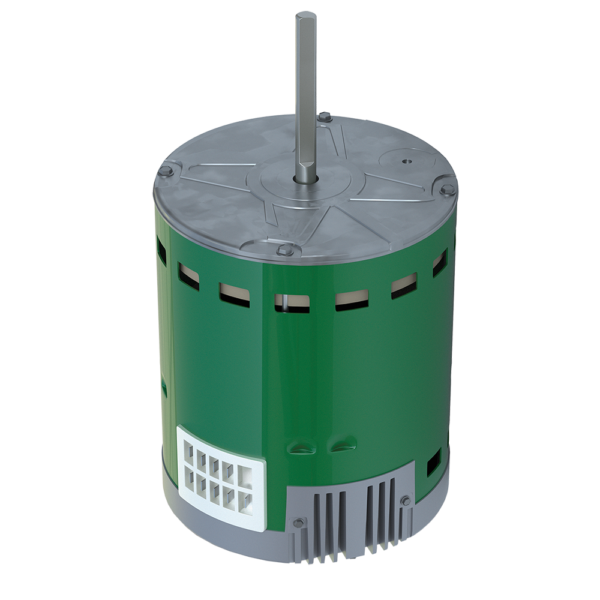

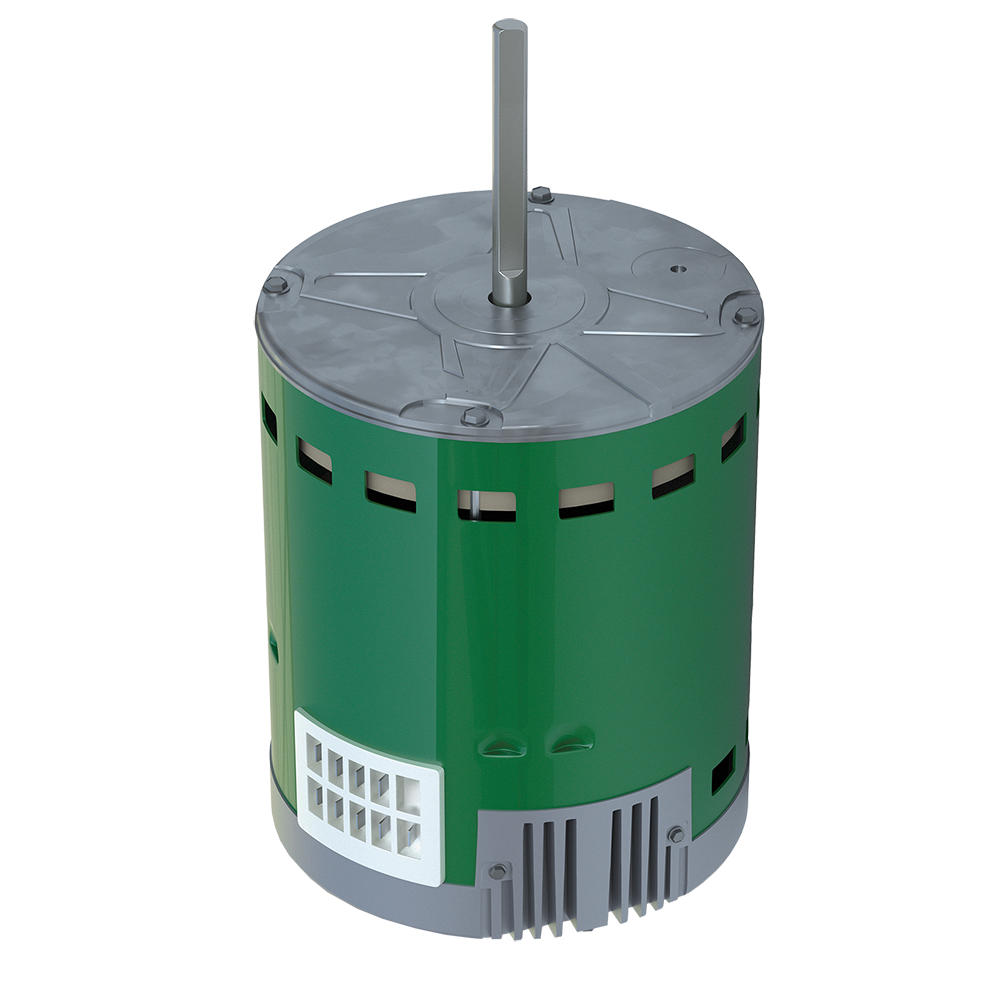

ECM motor 1/2HP 115V 6.8A 1075RPM 5-Spd 48-Frame. Replaces OEM constant torque standard ECM indoor blower motors, X13 or equivalent competitor models with 24vac speed taps. Compatible with OEM harness. Automatically determines motor direction using Genteq
The Evergreen EM was designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers and package systems that were designed with a standard ECM motor, such as X13 or equivalent competitor model. It can also be used to retrofit PSC motors in commercial building series VAV boxes and packaged heat pump systems. It is NOT intended to replace premium ECM constant airflow products, such as EON, 2.3, 3.0 and 2.5.
6105E
Regal Evergreen HVAC Motors from DiversiTech - Why is Genteq Evergreen right for me?
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
Regal Evergreen HVAC Motors from DiversiTech - EM Install
Regal Evergreen HVAC Motors from DiversiTech - Why is Genteq Evergreen right for me?
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
Regal Evergreen HVAC Motors from DiversiTech - EM Install
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
Regal Evergreen HVAC Motors from DiversiTech - EM Install
Regal Evergreen HVAC Motors from DiversiTech - EM Install
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0815585020486 | 8.50 | 16.50 | 8.50 | 13.00 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 1 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 50815585020481 | 41.25 | 41.25 | 45.25 | 780.00 | 60 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 8501.20.3000 | Mexico | N | N |
