6205E

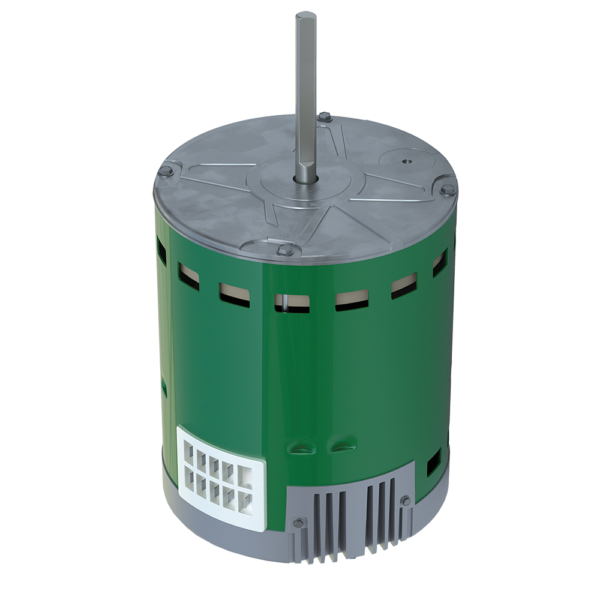

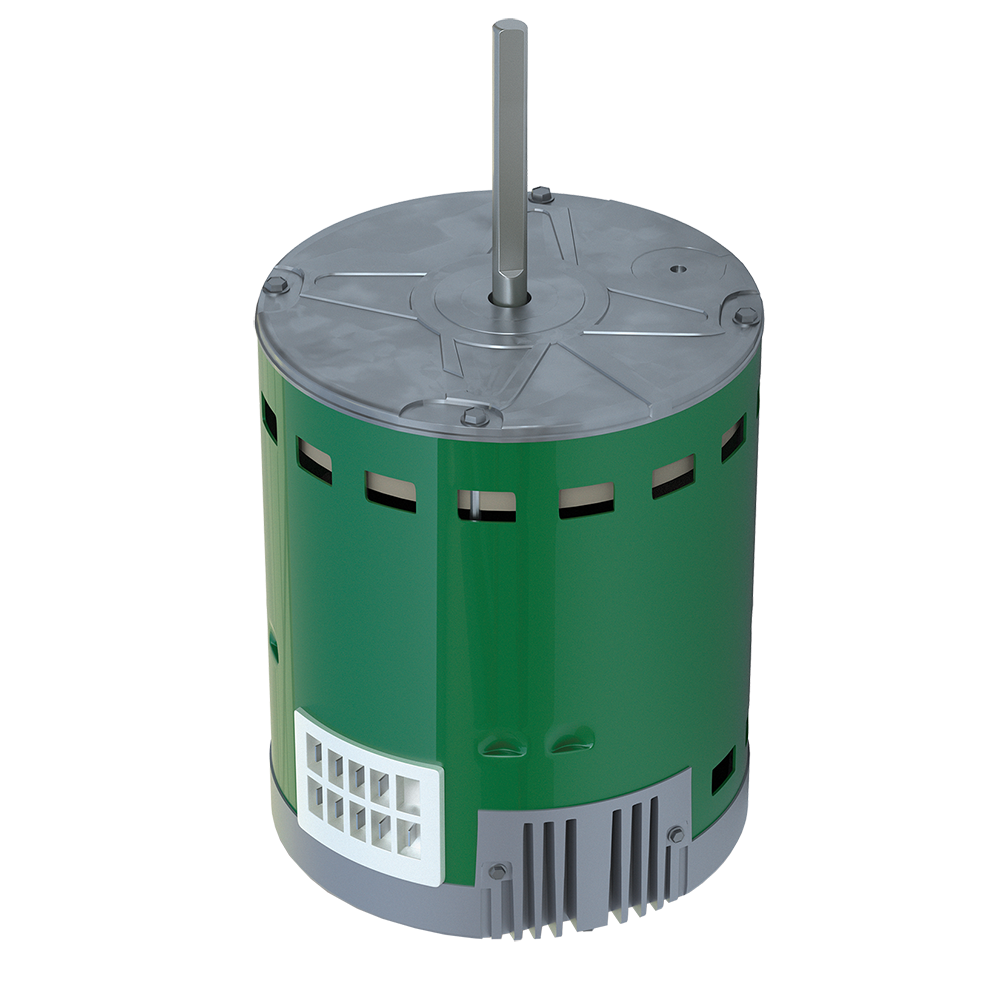

ECM motor 1/2HP 208-230V 4.1A 1075RPM 5-Spd 48-Frame. Replaces OEM constant torque standard ECM indoor blower motors, X13 or equivalent competitor models with 24vac speed taps. Compatible with OEM harness. Automatically determines motor direction using Ge

The Evergreen EM was designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers and package systems that were designed with a standard ECM motor, such as X13 or equivalent competitor model. It can also be used to retrofit PSC motors in commercial building series VAV boxes and packaged heat pump systems. It is NOT intended to replace premium ECM constant airflow products, such as EON, 2.3, 3.0 and 2.5.



Additional information

Weight 13.00 lbs
Dimensions 8.00 × 8.00 × 16.00 in

6205E

Regal Evergreen HVAC Motors from DiversiTech - Why is Genteq Evergreen right for me?

Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen

Regal Evergreen HVAC Motors from DiversiTech - EM Install

Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 08155850204938.0016.008.0013.00
Case 00.000.000.000.000
Master Case 00.000.000.000.000
Pallet 5081558502049848.0056.0040.00780.0060
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
8501.20.3000MexicoNN
