Additional information
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 6.00 × 4.25 × 1.00 in |
| Cross Reference | 00686109567004 |

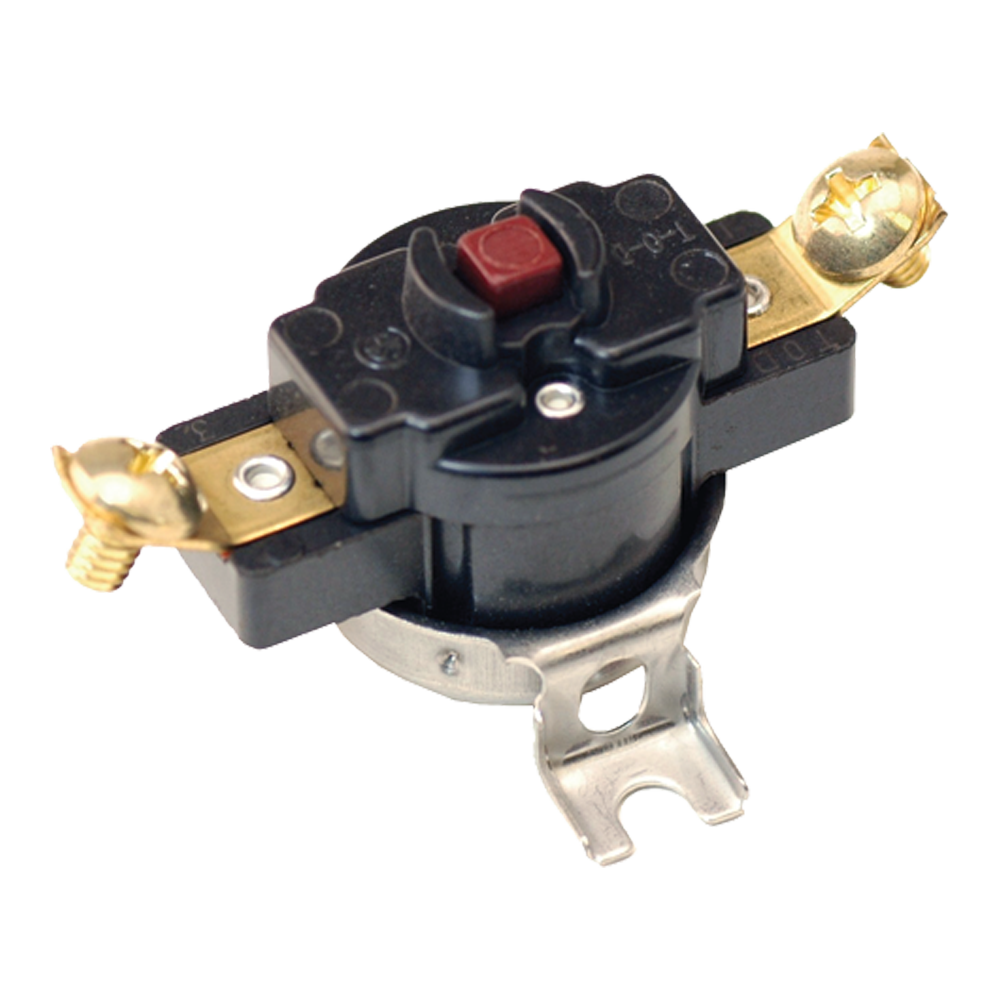

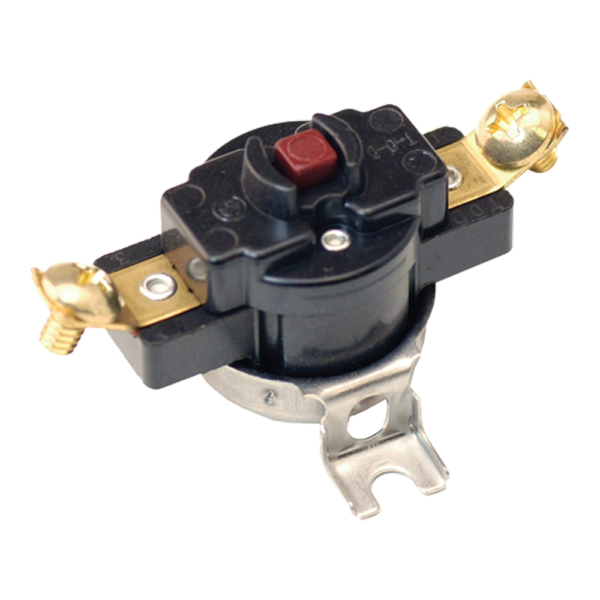

HMR-130
Bi-metal Manual Reset Fire Stat
This bi-metal switch is used as a manual reset. When temperature condition is met, the device opens. The manual reset can only be reset after proper cool-down of the switch. The HMR-130 is a popular fire stat in ducted air distribution systems. Should temperatures in the duct exceed 130 degree F, the switch opens, shutting down the whole system so no fire or smoke can be spread by the fan.
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0686109567004 | 4.25 | 1.00 | 6.00 | 0.20 | |
| Case | 30686109567005 | 10.00 | 16.00 | 10.00 | 18.00 | 100 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 0 | __ |
