Additional information
| Weight | 16.52 lbs |
|---|---|
| Dimensions | 21.10 × 7.60 × 7.45 in |
| Cross Reference | 00095247134342 |
WG840205HT

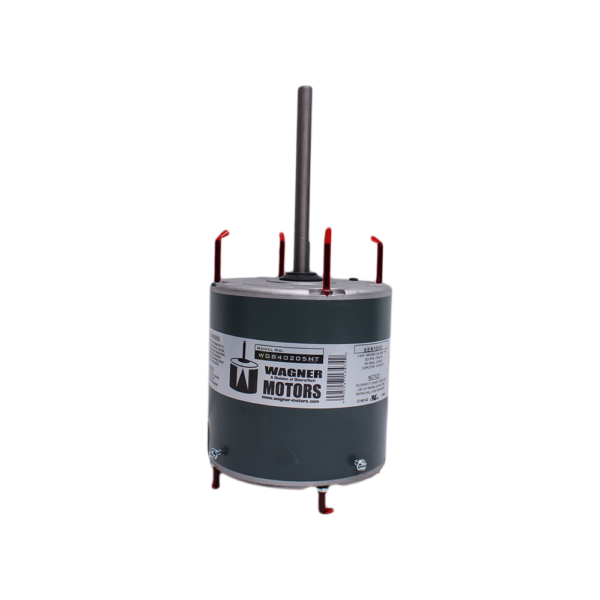

Condenser Fan Motor, 1/3HP, 825/1 RPM, 2.2FLA, 208-230V, 70C Ambient
These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30in. leads and 60 HZ with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 70 C Ambient Design with Extended Studs.
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0095247134342 | 7.60 | 7.45 | 21.10 | 16.52 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 50095247134347 | 40.00 | 56.00 | 48.00 | 2430.40 | 90 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 0 | __ |
